PVC Blowing Agent
We introduce ourselves as one of the leading manufacturer and exporter of optimum quality PVC Blowing Agent, also known as Azodicarbonamide (ADC) in the industry. Our Rigid PVC Blowing Agent is widely used in Rubber, PVC, footwear and Plastic industries. It is commonly used for the expansion of PVC, natural and synthetic rubbers. They are available in different ranges such as Micro Foam ADC-L5 and Micro Foam ADC-F2. In addition to this, . We stand among the prime PVC Blowing Agent Exporters and Azodicarbonamide Suppliers in India.
Products Details
Chemical Name : Azodicabonamide, Another Name : PVC Blowing Agent (ADC), Chemical Structure : NH2 CON-NCOH2 N, Packing :25 Kgs, Moleculer Weight : 116.08, CAS No. : 103-77-3, EC No. : 204-650-8
Manufacturer of (Foaming / Blowing Agent) Azodicarbonamide
Chemical Name |
Azodicarbonamide |
|---|---|
CAS No. |
{123-77-3} |
Eines No. |
204-650-8 |
Physical Form |

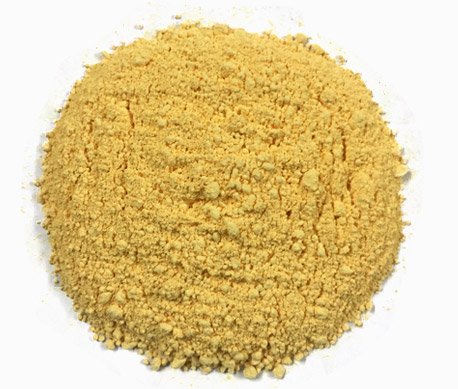

Fine, Free flow Light Yellow Powder |
Chemical Structure |
NH2 CON-NCOH2 N |
Decomposition Temp. |
190°C - 203°C |
Mol. Wt. |
116 |
Specific Gravity |
1.65 (At 25°C ) |
Heat of DecompositionMol. Wt. |
Approx 65% |
Residue |
(Urazole 36%, Cyanuric Acid 15%, Hydra Zodicarbonamide 42% and Cyamelide 7% |
Gas Volume Liberated |
230-240 ml/gm (65% N2,32% Co.,2% Co2 and 1% NH3) |
Storage Stability |
Stable |
Grades MICRO FOAM |
Particle Size(D-50) |
Gas ml/gm at STP |
DT C |
Application PVC |
|---|---|---|---|---|
MICRO FOAM ADC-F2 |
5±0.5 |
235±5 |
198±3 |
PVC Leather cloth by spread coating |
MICRO FOAM ADC-KH |
-- |
202±5 |
184±3 |
Mixing roles and white or coloured midsole EVA |
MICRO FOAM ADC-H1 |
11±1 |
235±5 |
198±3 |
Foamed article based on PVC/PP/HDPE/LDPE |
MICRO FOAM ADC-KE |
-- | 211±5 |
192±5 |
High Quality and internal midsole |
MICRO FOAM ADC-L5 |
7±0.5 |
230±5 |
195±3 |
PVC shoe soles, EVA slippers, PE extrusion, LDPE rotational moulding & rubber foams |
MICRO FOAM ADC-20 |
7.0±5 |
215±5 |
198±3 |
PVC shoe soles & leather cloth |
MICRO FOAM ADC 3~5 |
4.6±0.5 |
235±5 |
201±3 |
PVC Leather cloth by spread coating & Insulations |
MICRO FOAM ADC 8~10 |
9.5±0.5 |
240±5 |
201±3 |
EVA slippers, PE extrusion, LDPE rotational moulding & rubber foams |
Manufacturer of (Foaming / Blowing Agent) ADC+Modifiers
Grades Micro foam |
Particle Size(D-50) |
Gas ml/gm at STP |
DTºC |
Application |
|---|---|---|---|---|
Micro foam ADC-EV |
-- |
120±5 |
125±5 |
For thicker compression moulded |
Micro foam PT |
-- |
-- |
120±5 |
EVA foamed sheets For thicker compression moulded EVA/LDPE foamed sheets |
Foam |
Fine, Free flow Pale Yellow Powder |
|---|---|
Odour |
Odourless |
Toxicity |
Non toxice |
Gas Content |
Mainly Nitrogen & Carbon Monoxide |
pH (5%aq.Soln.) |
8.5±0.5 |
Moisture Content |
0.2% (w/w) |
Storage Stability |
Stable |
Azodicarbonamide + Modifiers (ADC-L)
Product |
Micro Foam ADC - EV |
Micro Foam - PT |
|---|---|---|
Chemical Structure |
C5 H10 N6 O2 CAS Number {101-25-7} MoL WT. = 186 |
CM5 H10 N6 O2 CAS Number {101-25-7} MoL WT. = 186 |
Gas Content |
Mainly Nitrogen & Carbon Monoxide |
Mainly Nitrogen & Carbon Monoxide |
Appearance |
Creamish Yellow Fine Powder |
Creamish Yellow Fine Powder |
ph (5% aqueous suspension at 25oC) |
8.0 ± 1.0 |
8.0 ± 1.0 |
Moisture Content |
0.5 % W/W Max |
0.5 % W/W Max |
Mesh Size (+300) BSS |
0.1 % W/W Max |
0.1 % W/W Max |
Decomposition Temp. (Open Capillary Tube Method) |
125oC± 5oC |
118oC± 5oC |
Gas Evaluation |
125± 5 ml/gm @ S.T.P. |
120± 5 ml/gm @ S.T.P. |
Application :
MICROFOAM-EV & MICROFOAM-PT can be used more safely than Di-nitroso Pentamethylene Tetramine. MICROFOAM-EV & MICROFOAM-PT is a Chemical Blowing Agent in powder form for the production of Cellular Products based on thermo plastic resin such as EV Co-Polymers. PE, is recommended for compression moulded Shoes, Slippers & Packing Sheets.
Special Features :
MICROFOAM-EV & MICROFOAM-PT leaves very little residue. The residue is odourless, non discoloring type and does not impart colour to the finish product. MICROFOAM - EV-PT disperses easily in Polymeric compositions resulting in a fine uniform cell structure.
Dosage :
5 – 8 PHR depending on the polymers used & extent to expansion required.
Packing :
MICROFOAM-EV & MICROFOAM-PT is also packed in 25 Kgs. HDPE woven bags/ UN approved corrugated paper cartons with a polythene liner inside.
Flammability :
MICROFOAM-EV & MICROFOAM-PT is non flammable and does not support combustion. Decomposition of MICROFOAM-EV & MICROFOAM-PT heating causes evolution of fumes resembling smoke. In case of Fire, use plenty of water, dry powder.
