Rubber Blowing Agent
Rubber Blowing Agent is a chemical added to rubbers that generates inert gases on heating, causing the resin to assume a cellular structure. It is also known as foaming agent. Our company specialises in the production and distribution of highly acclaimed Rubber Blowing Agent that is also reckoned as Dinitroso Pentamethylene Tetramine. It has a number of applications in Rubber and Plastic industry. It is widely used in rubber processing to produce sponges and expanded rubber. MICROFOAM DNPT is used in Footwear Industry, Hawai Chappals, Rubber Slipper, Light Weight Slipper, Shoes, etc. Our MICROFOAM DNPT is also used in the production of cellular rubber products, cellular ceramics, extrusions of profiles, sheets, pipes & wire coatings and Seals for crown corks and door sealing strips. We have carved a niche as one of the prominent Rubber Blowing Agent Manufacturers and Dinitroso Pentamethylene Tetramine Exporters in India.
Manufacturer of (Rubber Blowing Agent) DNPT
Chemical Name |
Di-Nitroso Pentamethylene Tetramine (DNPT) |
|---|---|
CAS No. |
101-25-7 |
UN No. |
3224 |
Formula |
(NO)2 (CH)5 N5 |
Moleculer Weight |
186 |
Bulk Density of Pure DNPT |
0.793 |
Reactivity With Acid /Acidic Salts |
Highly reactive leading to decomposition/fire |
Specification Parameter |
Micro Foam 100% |
Micro Foam 80% |
Micro Foam 60% |
|---|---|---|---|
Appearance |
White to Cream Yellow |
White to Cream Yellow |
White to Cream Yellow |
Decomposition Temperature |
192±2°C |
192±2°C |
192±2°C |
Moisture |
0.2% |
0.2% |
0.2% |
Gas at S.T.P.(mg/gm) |
235±5 |
225±5 |
220±5 |
Suspension pH of Aqueous |
7.8 |
8.9 |
8.9 |
Mesh Size : 325 Mesh |
0.4% |
0.4% |
0.4% |
Product |
DNPT 60 % |
DNPT 80 % |
DNPT 100 % |
|---|---|---|---|
Chemical Structure |
(NO)2(CH)5 N4 CAS Number {101-25-7} Mol WT. = 186 |
(NO)2(CH)5 N4 CAS Number {101-25-7} Mol WT. = 186 |
(NO)2(CH)5 N4 CAS Number {101-25-7} Mol WT. = 186 |
Gas Content |
Mainly Nitrogen & Carbon Monoxide |
Mainly Nitrogen & Carbon Monoxide |
Mainly Nitrogen & Carbon Monoxide |
Appearance |
White to Crimish Yellow Fine Powder |
White to Crimish Yellow Fine Powder |
White to Crimish Yellow Fine Powder |
ph (5% aqueous suspension at 25oC) |
8.0 - 9.0 |
8.0 - 9.0 |
7.0 - 9.0 |
Moisture Content |
0.2 % W/W Max |
0.2 % W/W Max |
0.2 % W/W Max |
Mesh Size (+325) BSS |
0.0 % W/W Max |
0.0 % W/W Max |
0.1 % W/W max |
Decomposition Temp. (Open Capillary Tube Method) |
194oC± 2oC |
192oC± 2oC |
190oC± 2oC |
Gas Evaluation |
220± 5 ml/gm @ S.T.P. |
225± 5 ml/gm @ S.T.P. |
235 + 5 ml/gm @ S.T.P. |
Rubber Activator / Accelerator (Curing Agent)
It acts as an activator with DNPT and Azodicarbonamide blowing agent. Reduces odor when used with DNPT and Azodicarbonamide type blowing agents. It is compatible with NR, SBR, butyl, EPDM and neoprene rubbers. It also reduces the decomposition temperature of blowing agents.
Grades MICRO FOAM |
Particle Size(D-50) |
Gas ml/gm at STP |
DT *C |
Application |
|---|---|---|---|---|
MICRO FOAM ACT |
--- |
--- |
128 - 135 |
lowers the decomposition |
Applications :
MICROFOAM DNPT is widely used in rubber processing as a chemical blowing agent providing economic means of producing sponges and expanded rubber. This product is widely used because of its low cost relative to other organic blowing agents.
MICROFOAM DNPT is widely used in the production of cellular rubber products.
MICROFOAM DNPT is partially used in some mixtures of fungicides for agriculture and green house use.
MICROFOAM DNPT used in the extrusions of profiles, sheets, pipes & wire coatings.
MICROFOAM DNPT used in for making cellular ceramics.
MICROFOAM DNPT used in for making Seals for crown corks and door sealing strips.
Dosage
5 – 10 PHR depending on the polymers used & extent to expansion required.
Packing
MICROFOAM DNPT is packed in 25 Kgs. HDPE woven bags/ UN approved corrugated paper cartons with a polythene liner inside.
Storage
Its storage stability is good enough provided it is stored :
In a cool and dry place.
Away from localized sources of heat, direct sunlight steam pipes open flame and similar source of heat.
Away from strong alkalis & acids with which it reacts.
Flammability
MICROFOAM DNPT is highly flammable and support combustion. Decomposition of MICROFOAM DNPT heating causes evolution of fumes resembling smoke. In case of Fire, use plenty of water, dry powder and concentrated Foam's.
Toxicity
MICROFOAM DNPT is of low toxicity by skin contact and is mildly irritating to the eyes, its decomposition residues are also of low toxicity.
Handling
MICROFOAM DNPT is substantially free from handling problems, care should be taken to prevent its contact with skin & eyes. Avoid creating dusty conditions because of possibility of respiratory.
Our Statement
The statements made in the above documents are correct to the best of our knowledge and belief. SHIVAM ADHESIVE PVT. LTD., gives no warranty as to their accuracy and will not be responsible for any loss or expenses arising from use of these products.

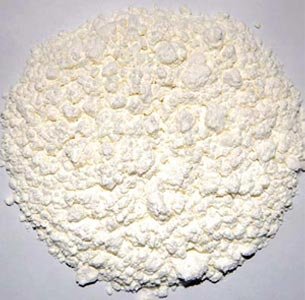

Dinitroso Pentamethylene Tetramine (Pure Item)
Chemical Name : Di-nitroso Pentamethylene Tetramine (Pure Item)
Another Name : Rubber Blowing Agent (DNPT)
Chemical Structure : (NO)2(CH) 5 N4
Packing : 25 Kgs
Moleculer Weight : 186
CAS No. : 101-25-7
UN No. : 3224

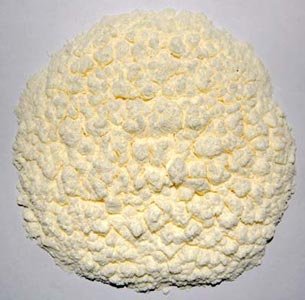

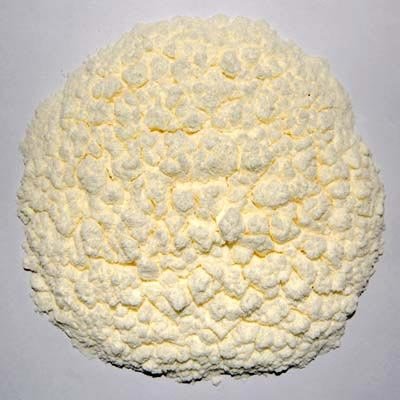

Dinitroso Pentamethylene Tetramine
Chemical Name : Di-nitroso Pentamethylene Tetramine (with mixing of Sodium Bicarbonate)
Another Name : Rubber Blowing Agent (BN)
Chemical Structure : (NO)2(CH)5 N4
Packing : 25 Kgs
Moleculer Weight : 186
CAS No. : 101-25-7
UN No. : 3224
